Body of Mandible – Mandibular Body

The body of the mandible is curved to a certain degree like a horseshoe, structurally. It comprises of two surfaces and two borders.

A slight ridge externally marks the mandible in the midline, denoting the symphysis or line of junction of the two pieces from which the bone is made up of at an early phase of life. This ridge splits inferiorly and encompasses the mental protuberance which is a triangular eminence. The base of mental protuberance is elevated on both sides in order to create the mental tubercle but has a recession centrally.

Interactive Anatomical Interface

Highlight
Frontal
parietal
Temporal
Sphenoid
Zygomatic
maxilla
Nasal
Lateral cartilage
greater alar cartilage
Mandbile
thyrohyoid membrane
thyroid cartilage
cricoid cartilage
cricotracheal ligament
ANterior longitudinal ligament
teeth
cervical vertabrae
first rib
second rib

Highlight
Frontal
parietal
Temporal
Sphenoid
Zygomatic
maxilla
Nasal
Lateral cartilage
greater alar cartilage
Mandbile

Highlight
thyrohyoid membrane
thyroid cartilage
cricoid cartilage
cricotracheal ligament
ANterior longitudinal ligament
teeth
cervical vertabrae
first rib
second rib
Highlight
frontal
Parietal
Sphenoid
temporal
Zygomatic
Maxilla
stylomandibular ligament
Lateral cartilage
posterior atlantoaxial ligament
lateral ligament
greater alar cartilage
teeth
mandible
hyoid
occipital bone
first rib
posterior atlanto-occipital memebrane
thyrohyoid membrane
thyroid cartilage
ricothyroid membrane and ligament
cricoid cartilage
cricotracheal ligament
t1 vertebra
stylohyoid ligament
joint capsule
Anterior longitudinal ligamnent
nuchal ligament
Cervical Vertebra
lacrimal

Highlight
frontal
Parietal
Sphenoid
temporal
Zygomatic
Maxilla
Lateral cartilage
greater alar cartilage
mandible
hyoid
thyrohyoid membrane
thyroid cartilage
ricothyroid membrane and ligament
cricoid cartilage
lateral ligament
cricotracheal ligament

Highlight
stylohyoid ligament
Anterior longitudinal ligamnent
nuchal ligament
Cervical Vertebra
first rib
t1 vertebra
lacrimal
occipital bone
teeth
posterior atlanto-occipital memebrane
posterior atlantoaxial ligament
joint capsule
stylomandibular ligament
-
Highlight
nasal
temporal bone
occipital bone
Internal auditory meatus
Stylomastoid foramen
Temporal
sphenoid
ethmoid
zygomatic bone
zygomatic bone
lacrimal bone
perpendicular plate
lacrimal bone
nasal cartilage
vomer
Nasal concha
Mandible
tectorial membrane of atlanto-axial joint
foramen magnum
tectorial membrane
c1 atlas
crista galli
ethmoidal sinuses
cribriform plate
foramen rotundum
optic foramen
superior orbital fissure
palatine
nuchal ligament
c01 atlas
posterior atlantoaxial ligament
c2 axis
c03 vertebrae
c04 vertebrae
C5 vertebrae

Highlight
nasal
temporal bone
occipital bone
Stylomastoid foramen
Temporal
sphenoid
ethmoid
zygomatic bone
zygomatic bone
lacrimal bone
perpendicular plate
posterior atlantoaxial ligament
nasal cartilage
vomer
Nasal concha
palatine
tectorial membrane of atlanto-axial joint

Highlight
foramen magnum
tectorial membrane
c1 atlas
crista galli
lacrimal bone
Mandible
ethmoidal sinuses
cribriform plate
foramen rotundum
Internal auditory meatus
optic foramen
superior orbital fissure
nuchal ligament
c01 atlas
c2 axis
c03 vertebrae
c04 vertebrae
C5 vertebrae
-

Please hover over the figure to get a brief info about the body parts. To get the elaborated info click on the body part.

Please rotate the device for better visual interaction.

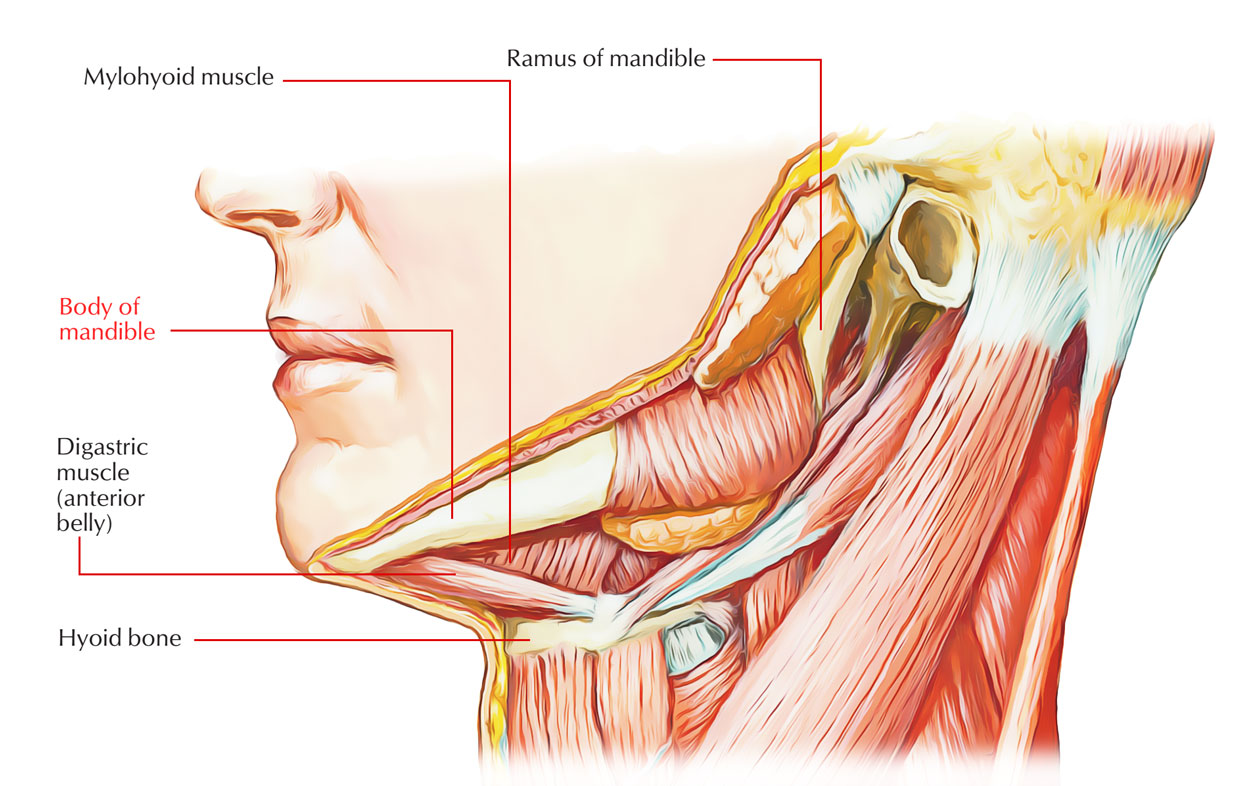

Body of Mandible – Mandibular Body

Body of Mandible – Mandibular Body

Features

The body of the mandible is U-shaped and it has:

  • Two surfaces
    •  External surface.
    •  Internal surface.
  • Two borders
    •  Superior margin of the body is known as alveolar process. It possesses openings of lower 16 teeth.
    •  A small recession called digastric fossa is present on either side near the median plane on the inferior margin or base of the mandible. It provides connection to the anterior belly of the digastric.

External and Internal Surfaces of the Body

The external surface of the body:

  • Symphysis menti is a faint median rim on the external surface of the body. It marks the line of fusion of the two halves of the mandible at the age of 2 years. The symphysis menti expands below into a triangular elevation termed mental protuberance.
  • Mental foramen is located under the interval in the middle of the premolar teeth and gives route for mental nerve and vessels.
  • Oblique line is the extension of the anterior margin of the ramus and travels downwards and forwards towards the mental tubercle.
  • Incisive fossa is a shallow recession just inferior towards the incisor teeth.

The internal surface of the body:

  • Mylohyoid line is a protuberant oblique rim that travels obliquely downwards as well as forwards from the back of the 3rd molar tooth approximately 1 cm inferior to the alveolar margin towards the symphysis menti under the genial tubercles.
  • Mylohyoid groove is located below the posterior end of the mylohyoid line. Mylohyoid nerve along with vessels travel in this groove.
  • Sublingual fossa is a shallow zone over the anterior portion of the mylohyoid line and contains sublingual gland.
  • Submandibular fossa is a slightly scooped out part under the posterior portion of the mylohyoid line and contains submandibular gland.

Attachments

Muscles Attached to Mandibular Body

Muscles Attached to Mandibular Body

Muscles connected on the body of the mandible:

The various muscles attached to the body of the mandible are as follows:

  • Buccinator emerges from oblique line below the three molar teeth.
  • Mylohyoid emerges via mylohyoid line.
  • Genioglossus emerges via superior genital tubercle.
  • Geniohyoid emerges via inferior genital tubercle.
  • Anterior belly of digastrics emerges from digastric fossa on the base of mandible near symphysis menti.
  • Platysma is implanted within the base.
  • Superior constrictor emerges from the region over the posterior end of the mylohyoid line.
