Extraocular Muscles


The extraocular muscles are classified into 2 groups: voluntary and involuntary.

Extraocular Muscles

Extraocular Muscles

Voluntary Muscles

There are 7 voluntary muscles in the orbit. Of those, 6 muscles move the eyeball and 1 muscle moves the upper eyelid.

The muscles moving the eyeball are 4 recti and 2 oblique muscles. The 1 which moves the upper eyelid is named levator palpebrae superioris:

  • 4 recti muscles.
  • Superior rectus.
  • Inferior rectus.
  • Medial rectus,
  • Lateral rectus.
  • 2 oblique muscles.
  • Superior oblique,
  • Inferior oblique.
  • 1 levator palpebrae superioris.

Involuntary Muscles

There are only three automatic/ smooth muscles, viz. superior tarsal or Muller’s muscle, inferior tarsal and orbitalis.

Recti Muscles

Origin: All the recti originate from the corresponding margins of the common tendinous ring. The lateral rectus originates by 2 heads.

The common tendinous ring encloses the optic canal and middle part of the superior orbital fissure. It’s connected medially to apex of the orbit and laterally to a small tubercle (tubercle of Zinn) on the lower border of superior orbital fissure.

Insertion: All the recti are added into sclera little posterior to the limbus (corneoscleral junction) in front of the equator of the eyeball. Typical space from limbus is: Medial rectus, 5 millimeters Inferior rectus, 6 millimeters Lateral rectus, 7 millimeters Superior rectus, 8 millimeter

Oblique Muscles

The oblique muscles of the orbit are superior and inferior. Their origin and insertion are as follows:

Superior Oblique

Origin: from body of sphenoid superomedial to the optic canal.

Insertion: into sclera supporting the equator in posterior superior quadrant of the eyeball, between the superior rectus and lateral rectus. The tendon of superior oblique goes through a fibrocartilaginous pulley connected to the trochlear notch in the anterolateral part of the roof of the orbit.

Inferior Oblique

Origin: from rough feeling in the anteromedial angle of the floor of orbit, lateral to the lacrimal groove.

Insertion: into sclera supporting the equator in the posterosuperior quadrant of the eyeball a little below and posterior to the insertion of superior oblique.

Nerve Supply: all the extraocular muscles that move the eyeball are supplied by the oculomotor nerve (CN3) with the exception of lateral rectus and superior oblique that are supplied by the abducent nerve (CN6) and trochlear nerve, respectively [mnemonic: LR6, S04, i.e ” LR (lateral rectus) by 6 CN and SO (superior oblique) by 4 CN]

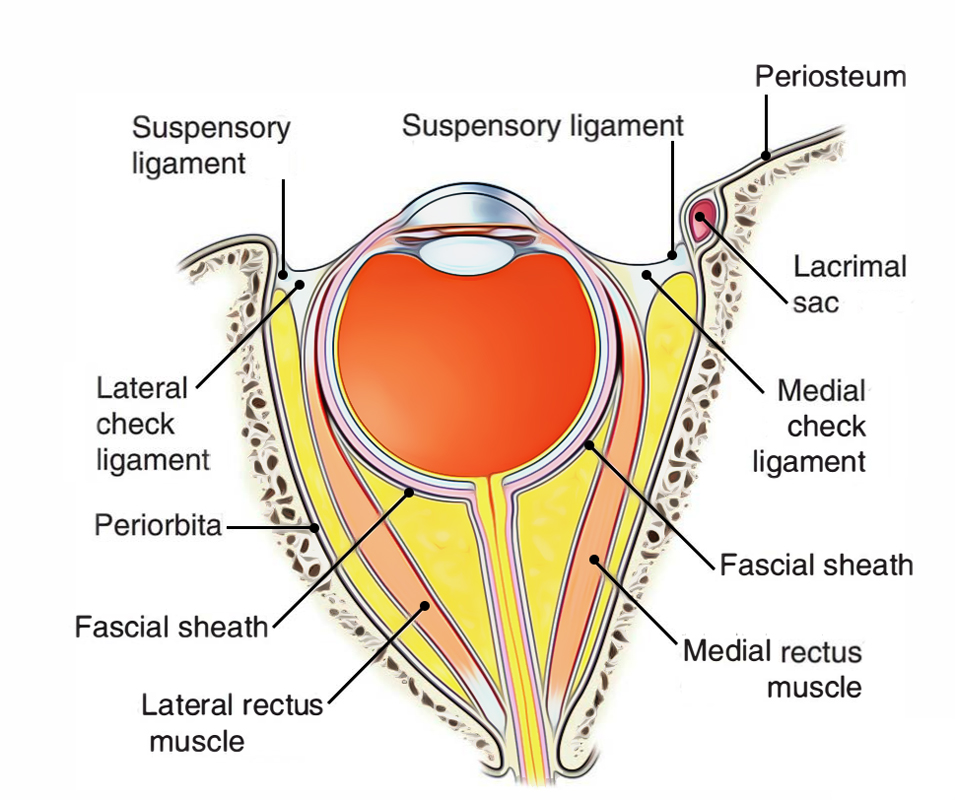

Activities of Muscles on the Eyeball


Extraocular Muscles: Muscle Activity

Extraocular Muscles: Muscle Activity

Both eyes face forwards and their long axes (visual optic axes) is located in sagittal plane, parallel with every other and with medial walls of the orbits. The lateral walls of orbits slope backwards and medially making a right (90°) angle with every other. The ocular muscles and optic nerve come from the apex of the orbit near the rear of the medial wall and pass forwards and laterally to be connected to the eyeball. The activities of superior and inferior recti are, consequently, not straight, despite their name. The superior and inferior oblique muscles, consequently, have to act in concert with 2 recti to be able to generate direct upward and downward movements of the eyeball.

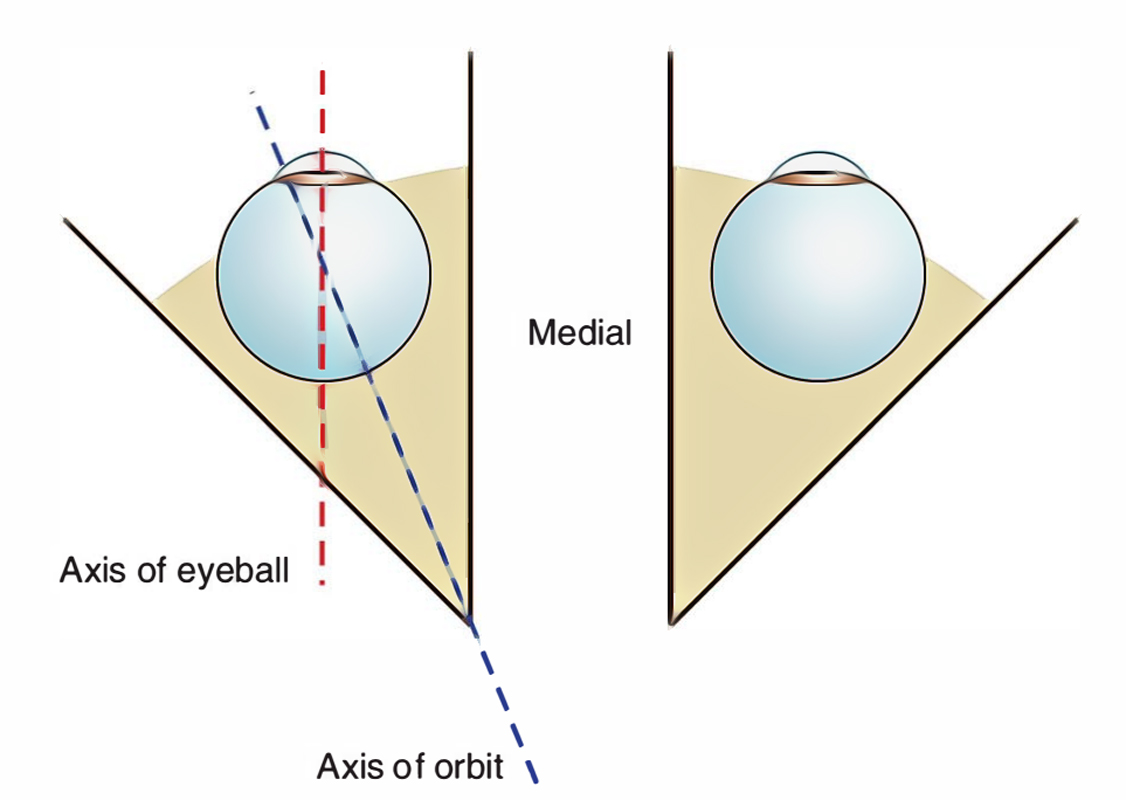

Axis of Movements of the Eyeball



Extraocular Muscles: Axis of Movements

Extraocular Muscles: Axis of Movements

Elevation and depression: around the transverse axis going through the equator.

Adduction and abduction: around the vertical axis going through the equator.

Rotation (torsion): around the anteroposterior axis stretching from anterior post to posterior pole of the eyeball.

When 12 o’clock position of the cornea rotates medially, it is named intorsion and when it rotates laterally, it termed extorsion.

Activities of Individual Muscles

The activities of individual muscles are easily deduced from Starling’s diagram.


Extraocular Muscles: Activities of Muscles

Extraocular Muscles: Activities of Muscles

They’re as follows:

  • Superior rectus (SR): elevation, adduction and intorsion.
  • Inferior rectus (IR): depression, adduction and extorsion.
  • Medial rectus (MR): adduction.
  • Lateral rectus (LR): abduction.
  • Superior oblique (SO): depression, abduction and intorsion.
  • Inferior oblique (IO): elevation, abduction and extorsion.

Conjugate movements: when both the eyes move in exactly the same way with visual axes being parallel.

Disconjugate movements: when the axes of both eyes converge or diverge.

Clinical Significance

Strabismus/squint: Unilateral paralysis of an individual muscle as a result of engagement of the nerves creates strabismus or squint (deviation of eye to the opposite side) and may lead to diplopia (double vision). In diplopia, the light from an object isn’t focused on the indistinguishable regions of both retinae. The actual image falls on the macula of the unaffected eye and fictitious image falls on the peripheral part of retina of the paralyzed eye. The examples are as under:

  • Muscle paralyzed Nerve included Effects.
  • Lateral rectus Abducent Medial squint.
  • Medial rectus Oculomotor Lateral squint.

LevatorpalpebraeSuperioris (Lps) Muscle


From undersurface of the lesser wing of sphenoid in the apex of the orbit, above the common tendinous ring by a narrow tendon.


The muscle expands as it enters forwards from its origin and splits into 3 lamellae:

  • Upper lamella being composed of skeletal muscle enters the orbital septum goes through the fibres of orbicularis oculi to be added into the skin of upper eyelid.
  • Intermediate lamella being composed of smooth muscle (superior tarsal muscle) is added on to the upper border of the superior tarsal plate.
  • Lower lamella being composed of connective tissue is added on to the superior fornix of the conjunctiva.
Nerve Supply

Striped (skeletal muscle) part is supplied by the upper section of oculomotor nerve.

Unstriped (smooth muscle) part is supplied by the post-ganglionic sympathetic fibres from the superior cervical ganglion.


Elevation of the upper eyelid to open the eye.

Clinical Significance

Paralysis of levator palpebrae superioris: Paralysis of levator palpebrae superioris as a result of participation of the oculomotor nerve results in entire ptosis (drooping of upper eyelid). The lesion of cervical sympathetic chain (as in Horner’s syndrome) leads to partial ptosis (partial drooping of upper eyelid) as it changes only smooth muscle part of LPS.
