Every nasal cavity interacts with the outside via nostril (or naris) and together with the nasopharynx via the posterior nasal aperture (or the choana) every nasal cavity is splitted into 2 portions: (a) a small anteroinferior part lined by skin-the vestibule and (b) a large posterosuperior part lined by mucosa-the nasal cavity appropriate.

Nasal Cavity

Nasal Cavity

Vestibule of Nose

It’s the anteroinferior part of nasal cavity, lined by skin. The skin includes sebaceous glands, hair follicles and the stiff interlacing hair termed vibrissae. Its upper limit on the lateral wall of nasal cavity is marked by limen nasi. Its medial wall is composed by a mobile columella.

Nasal Cavity Proper

Borders

The nasal cavity appropriate presents the following bounds:

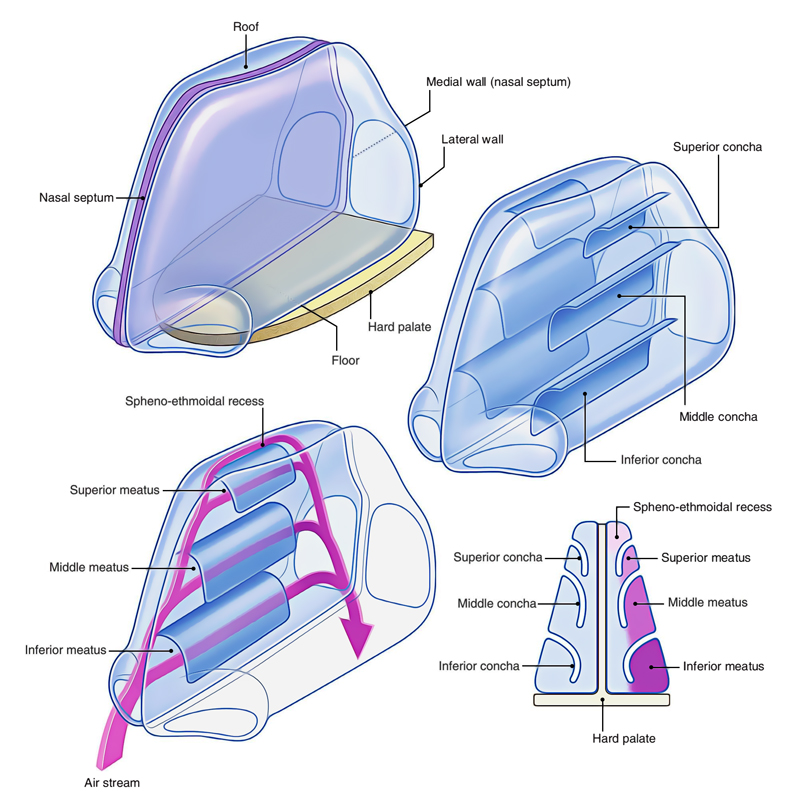

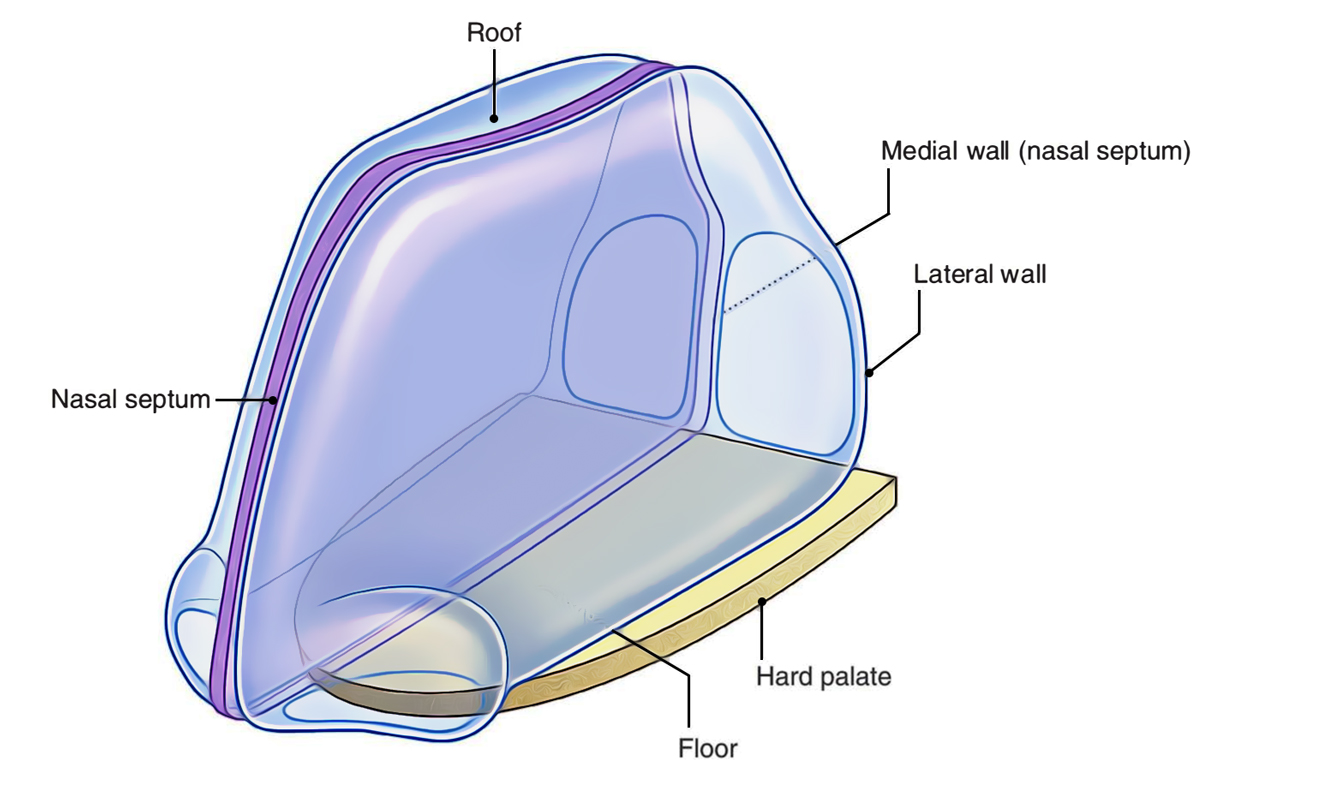

Nasal Cavity: Borders

Nasal Cavity: Borders

  • Roof.
  • Floor.
  • Medial wall (septum).
  • Lateral wall.

Roof

The roof is extremely narrow in front and widens to about 1 cm near the choanae. It’s horizontal in the middle third, where it’s created by the cribriform plate of the ethmoid. Via this olfactory nerves goes into the cranial cavity from the nasal cavity.

The anterior third of roof inclines downwards and forwards. It’s created by the nasal spine of the frontal, the nasal bone and the junction of the septal and lateral cartilages. The posterior third of the roof also slopes downwards and backwards. It’s created by the anterior surfaces of the body of the sphenoid.

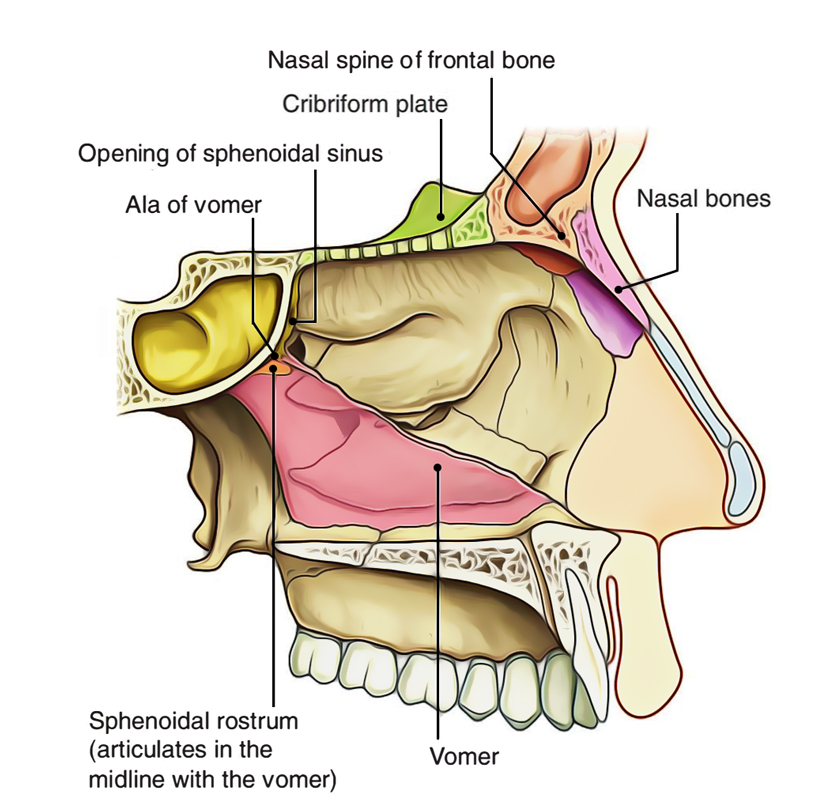

Nasal Cavity: Roof

Nasal Cavity: Roof

Floor

The floor is virtually horizontal. It’s created by the upper surface of the hard palate, i.e., anterior three-fourth is composed by palatine process of maxilla and posterior 1 fourth is composed by the horizontal plate of the palatine bone.

Nasal Cavity: Floor

Nasal Cavity: Floor

Medial Wall

It is composed by nasal septum the nasal septum is a median osseocartilaginous partition between the 2 nasal cavities it’s rarely just in the median plane but bulges to 1 or the different side, more often to the right the bony part is composed by:

  • Perpendicular plate of ethmoid, which creates the posterosuperior part of the septum and
  • Vomer, which creates the posteroinferior part of the septum.

Moreover, the nasal spine of fontal bone, crest created by nasal bones, sphenoidal crest and nasal crest created by the fusion of palatine processes of maxillae and horizontal plates of palatine bones also give somewhat in the formation of nasal septum.

The cartilaginous part is composed by:

Nasal Cavity: Medial Wall

Nasal Cavity: Medial Wall

  • septal cartilage, which creates the major anterior part of the septum and fits in the angle between the vomer and perpendicular plate of ethmoid and
  • septal processes of both major alar cartilages

The septal processes (medial crura) of 2 major alar cartilages are combined together in the midline by a fibrous tissue to create columella (also referred to as columellarseptum).

Between the columella and caudal border of the septal cartilage, a small portion of septum is created from double layer of the skin with no bony or cartilaginous support. This part is called membranous septum.

Both columellar and membranous parts are freely movable from side to side.

Clinical Significance

Deviated nasal septum (DNS): The deviated nasal septum isn’t unusual and is an essential cause of nasal obstruction. The males are affected more than females. It takes place because of numerous variables like trauma, developmental blunder, etc. If DNS is acute and causing mechanical obstruction, resulting in trouble in breathing sinusitis, headache, excessive snoring, etc., it’s corrected by submucous resection (SMR) or septoplasty.

The septal cartilage not only creates partition between the left and right nasal cavities but also gives support to the dorsum of the anterior two-third of the nose. For that reason, its destruction as a result of disease or excessive removal in submucous resection leads to supratip depression of the external nose.

Lateral Wall

The lateral wall of the nose is complicated. It’s created by a number of bones and cartilages.

Nasal Cavity: Lateral Wall

Nasal Cavity: Lateral Wall

The bones creating the lateral wall are:

  • nasal,
  • frontal process of maxilla,
  • lacrimal,
  • conchae and maze of ethmoid,
  • inferior nasal concha,
  • perpendicular plate of palatine and
  • medial pterygoid plate of sphenoid.

The cartilages creating the lateral wall are:

  • lateral nasal cartilage (upper nasal cartilage),
  • major alar cartilage (lower nasal cartilage) and
  • 3 to 4 miniature cartilages of the alae (small alar cartilages).

Features: The lateral wall is splitted into the following 3 regions:

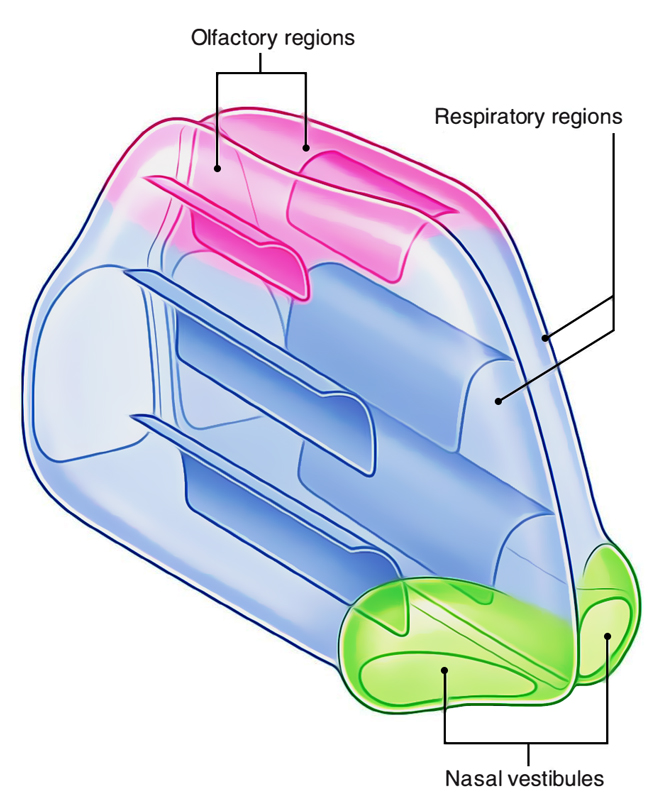

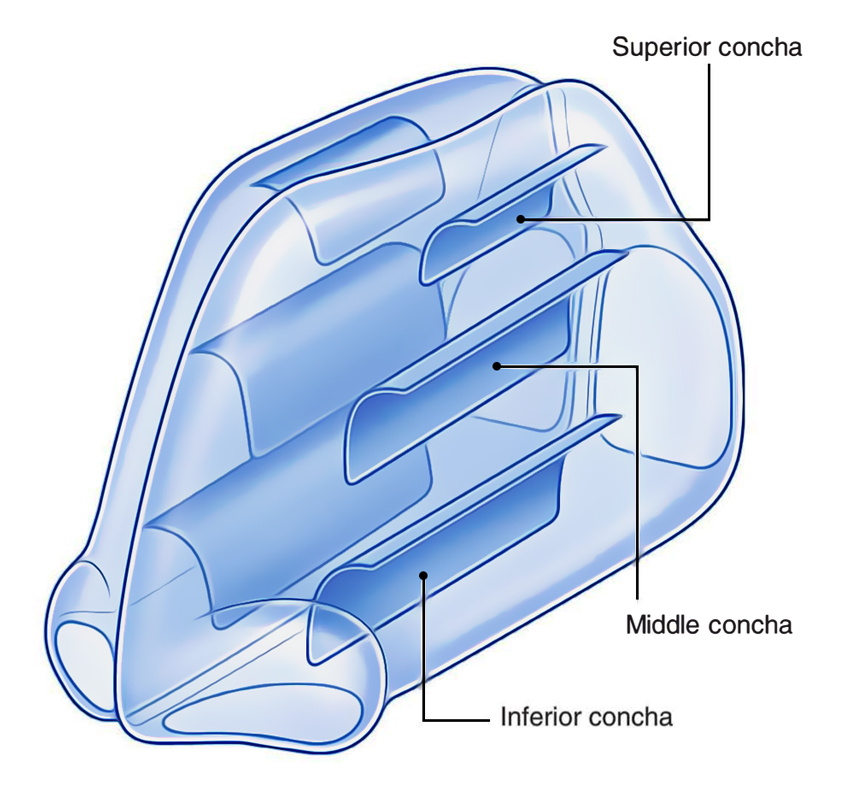

Nasal Cavity: Three regions of the Lateral Wall

Nasal Cavity: Three regions of the Lateral Wall

  • Anterior part presents a small depressed area, the vestibule. It’s lined by the skin including vibrissae (short, stiff curved hair).
  • Middle part is called atrium of the middle meatus. Itis restricted above by a faint ridge of mucous membrane, the agger nasi. The curved mucocutaneous junction between the atrium and vestibule is called limen nasi.
  • Posterior part presents 3 scroll-like projections, the conchae or turbinates. The spaces dividing the conchae are referred to as meatuses.

The conchae and meatuses create the primary features of the lateral wall:

Conchae (also named turbinates) are the curved bony projections pointed downwards and medially. Below and lateral to every concha is a corresponding meatus. From above downwards the conchae are superior, middle and inferior nasal conchae. Occasionally a 4th concha, the concha suprema is also present.

Conchae:

  • Superior and middle nasal conchae are the projections from the medial surface of the ethmoidal labyrinth.
  • Inferior concha is a separate bone.
  • The superior concha is smallest and inferior concha is largest in size.

Meatuses:

  • Meatuses are the passages (recesses) below the overhanging conchae. They’re visualized once conchae are removed.
  • Inferior meatus is the largest and is located underneath the inferior nasal concha.

Middle meatus is located underneath the middle concha. It presents subsequent features:

  • Ethmoidal bulla (bulla ethmoidalis), a round elevation generated by the underlying middle ethmoidal sinuses.
  • Hiatus semilunaris, a deep semicircular sulcus below the bulla ethmoidalis.
  • Infundibulum, a short passage in the anterior end of middle meatus.
  • Superior meatus is the smallest and is located below the superior concha.
  • A triangular depression, above and behind the superior concha is called the sphenoethmoidal recess.

Openings: The lateral wall of the nose has number of openings.

The openings in the lateral wall of the nose.

Lining of Nasal Cavity

The lining of the different regions of nasal cavity are as follows:

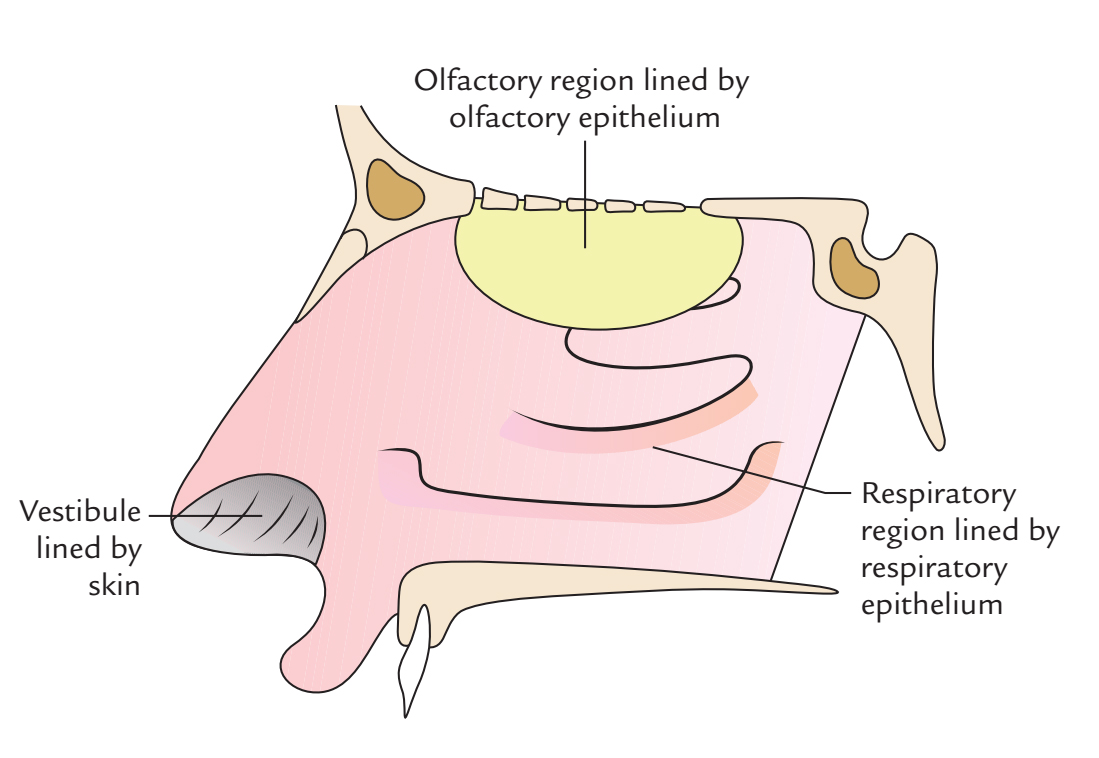

Nasal Cavity: Lining

Nasal Cavity: Lining

  • Vestibule: It’s lined by the skin comprising a large number of sebaceous glands and interlacing rough hair-the vibrissae. As the air goes through the nostrils the large particles of dust in the air are trapped by the vibrissae.
  • Olfactory region: The upper third of the nasal cavity bounded above by cribriform plate of ethmoid, laterally by superior nasal concha and medially by upper one-third of the nasal septum creates the olfactory region. It’s lined by the olfactory epithelium, which includes receptor cells for scent. Here mucous mem-brane is lighter in color.
  • Respiratory region: The remainder of the nasal cavity (lower two-third) is lined by the respiratory epithelium, i.e., pseudostratified ciliated columnar epithelium with goblet cells. The respiratory mucosa is extremely vascular and includes a large number of cavernous spaces and sinusoids to warm the air. Moreover, it includes a large number of serous and mucous glands. The secretion of the serous glands makes the air damp while the secretion of the mucous glands traps the dust and other particles. Farther, the cilia on the top layer of the mucous membrane sweep the mucous posteriorly into the pharynx where it’s consumed and removed by the GIT.

Because of the presence of cilia in the epithelial lining and secretions of the serous and mucous glands in the nasal cavity, the air while going through the nasal cavity isn’t only filtered but also moistened and humidified, a mechanism that shields the lower respiratory tract.

Arterial Supply of Nasal Cavity

The nasal cavity has abundant arterial supply.

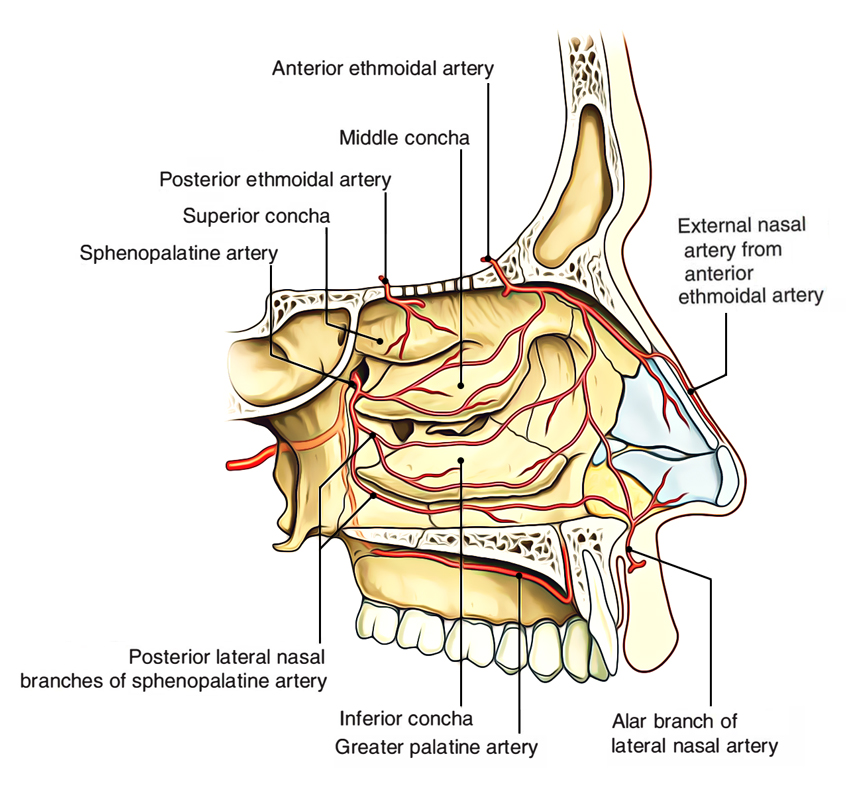

Nasal Cavity: Arterial Supply

Nasal Cavity: Arterial Supply

Arterial Supply of Nasal Septum

Nasal Cavity: Arterial Supply of Nasal Septum

Nasal Cavity: Arterial Supply of Nasal Septum

The nasal septum is supplied by these arteries:

Clinical Significance

Little’s Area

It’s an area in the anteroinferior part of the nasal septum just above the vestibule. It’s highly vascular. Here the septal branches of the anterior ethmoidal sphenopalatine, greater palatine and superior labial arteries anastomose to create a vascular plexus referred to as Kiesselbach’s plexus. This area of nasal septum is the commonest site of epistaxis (nose bleeding) in kids and young adults generally because of finger nail trauma following deciding of the nose.

Arterial Supply of Lateral Wall

The arterial supply of the different parts of the lateral wall is as follows:

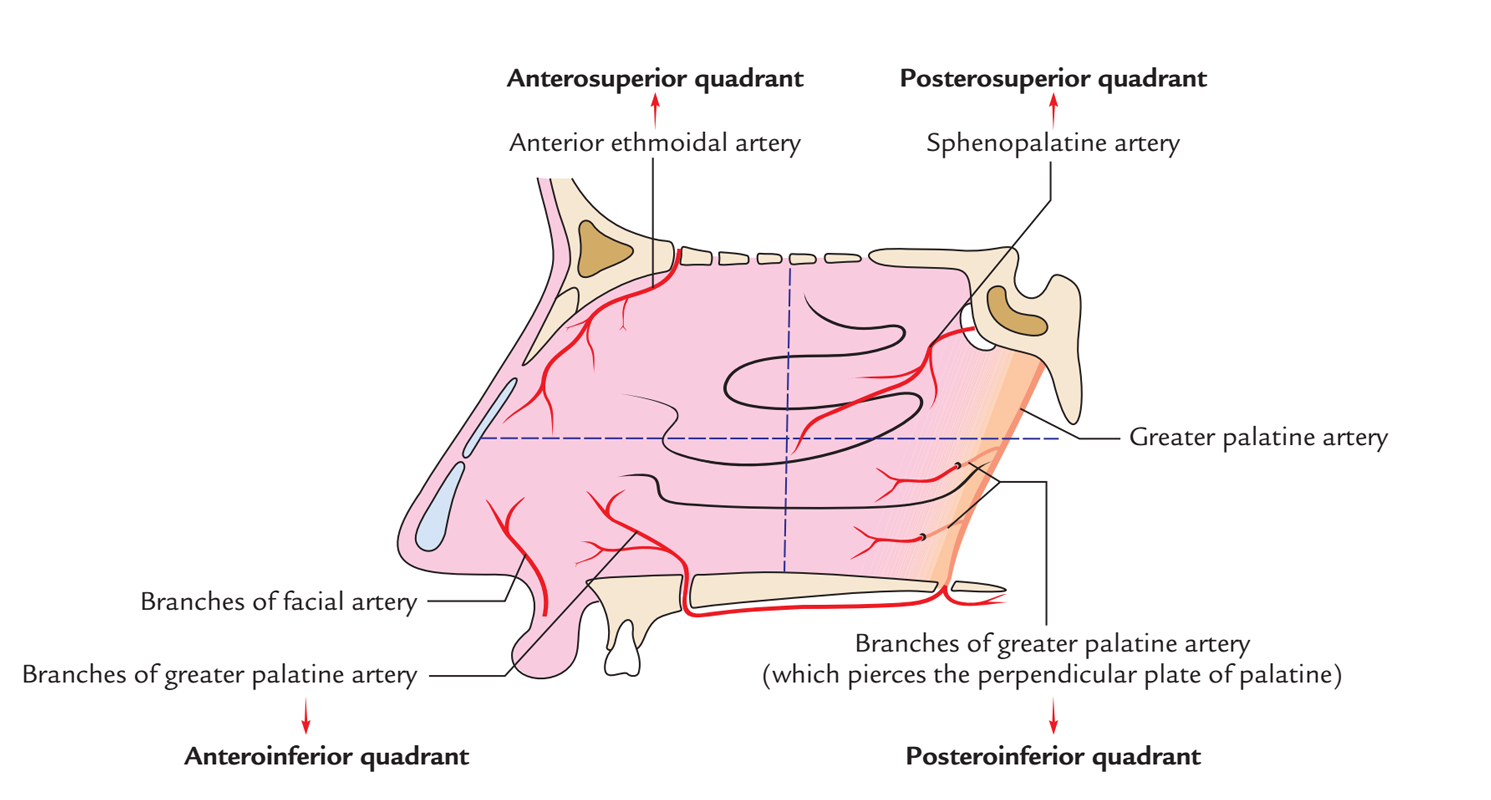

Nasal Cavity: Arterial Supply of the Lateral Wall

Nasal Cavity: Arterial Supply of the Lateral Wall

  • Anterosuperior quadrant, by the anterior ethmoidal artery, a branch of ophthalmic artery.
  • Anteroinferior quadrant, by branches of facial and greater palatine arteries.
  • Posterosuperior quadrant, by sphenopalatine artery, a branch of maxillary artery.
  • Posteroinferior quadrant, by branches of greater palatine artery, which pierces the perpendicular plate of palatine.

Venous Drainage of Nasal Cavity

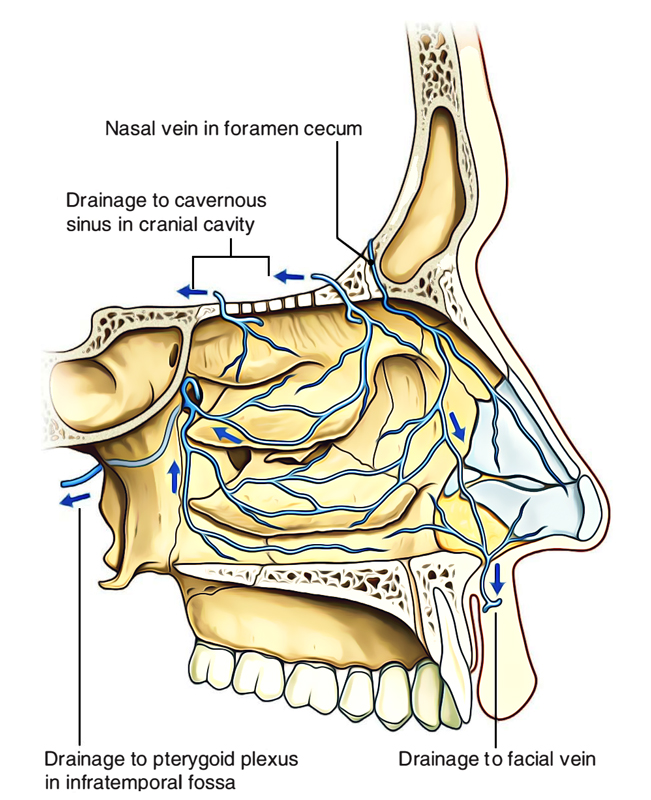

Nasal Cavity: Venous Drainage

Nasal Cavity: Venous Drainage

The veins draining the nasal cavity create plexus below the mucosa and in general follow the arteries. The veins of nasal cavity drain into facial vein, pterygoid venous plexus and pharyngeal venous plexus.

The submucous venous plexus is more marked in the region of little’s area.

The retrocolumellar vein runs vertically downwards, crosses the floor of nasal cavity to join the venous plexus on the lateral wall. This is the common site of venous bleeding in young people.

Lymphatic Drainage of Nasal Cavity

Nasal Cavity: Lymphatic Drainage

Nasal Cavity: Lymphatic Drainage

Lymph from anterior half of nasal cavity (both medial and lateral walls) is emptied into submandibular lymph nodes and from posterior half into retropharyngeal lymph nodes.

Nerve Supply of Nasal Cavity

The nasal cavity is supplied by the following nerves:

  • Olfactory nerves: They carry sense of smell from olfactory region of nasal cavity.
  • Nerves of general sense: These are:
  • anterior ethmoidal nerve,
  • branches of sphenopalatine ganglion and
  • branches of infraorbital nerve

They carry sensations of pain, feel and temperature from respiratory region and vestibule of nasal cavity.

Autonomic nerves: Both parasympathetic andsympathetic fibres furnishing nasal cavity are originated from Vidian’s nerve (nerve of pterygoid canal) via pterygopalatine ganglion.

The parasympathetic fibres supply nasal glands and restrain nasal secretion.

The sympathetic fibres, on stimulation, cause vasoconstriction.

Clinical Significance

Rhinitis

It’s the inflammation of mucus membrane lining the nasal cavity. The hypertrophy of mucosa over inferior concha is a familiar characteristic of allergic rhinitis. Medically it presents as: nasal blockage, sneezing and water discharge from nose (rhinorrhea).

The excessive rhinorrhea on account of vasomotor and allergic rhinitis can be restrained by sectioning the Vidian nerve.

Nerve Supply of Nasal Septum

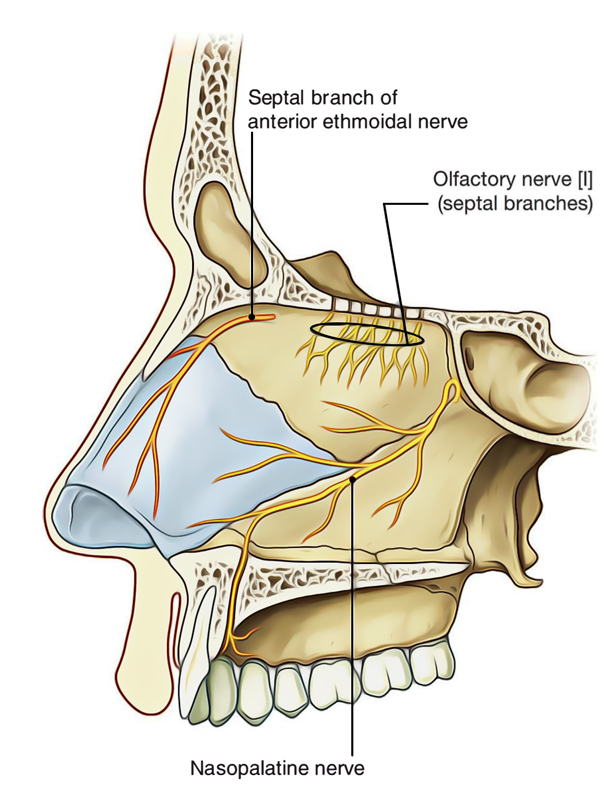

Nasal Cavity:  Nerve Supply of Nasal Septum

Nasal Cavity: Nerve Supply of Nasal Septum

The nasal septum gets supply from the following nerves:

  • Olfactory nerves-supply the upper part (one-third) just below the cribriform plate.
  • Internal nasal branch of the anterior ethmoidal nerve, a branch from nasociliary-supplies the anterosuperior part.
  • Nasopalatine nerve, a branch of pterygopalatine ganglion-supplies the posteroinferior part.
  • Medial posterior superior nasal branches of pterygopalatine ganglion-supply the posterosuperior part.
  • Nasal branch of greater palatine nerve-supplies the posterior part.
  • Anterior superior alveolar nerve, a branch of maxillary nerve-supplies the anteroinferior part.

Nerve Supply of Lateral Wall

The following nerves supply the different partsof the lateral wall:

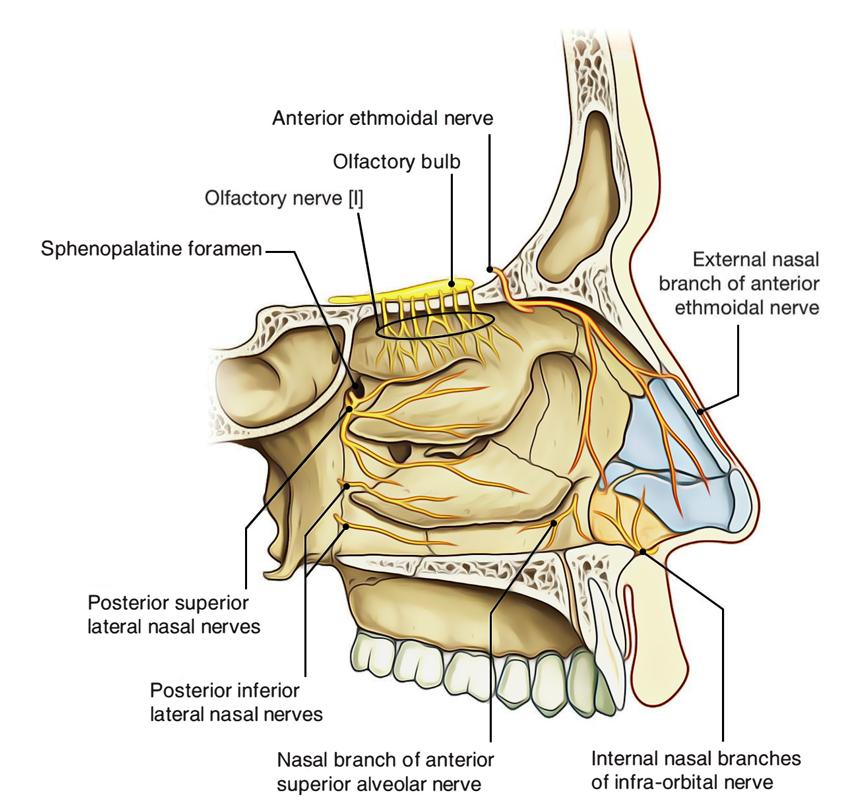

Nasal Cavity: Nerve Supply of Lateral Wall

Nasal Cavity: Nerve Supply of Lateral Wall

  • Olfactory nerves-supply the upper part (one-third) just below the cribriform plate of ethmoid up to the superior concha.
  • Anterior ethmoidal nerve (from ophthalmic)-supplies the anterosuperior quadrant.
  • Anterior superior alveolar nerve, a branch of infraorbital nerve (from maxillary)-supplies the anteroinferior quadrant.
  • Posterior superior lateral branches, of pterygopalatine ganglion-supply posterosuperior quadrant.
  • Nasal branches of greater palatine nerve, (from pterygopalatine ganglion)-supply posteroinferior quadrant.

Clinical Significance

Evaluation of the Nasal Cavity (Rhinoscopy)

The nasal cavity can be analyzed in the living individual either via the nostril (anterior rhinoscopy) or via the pharynx (posterior rhinoscopy).

Anterior rhinoscopy: It’s performed by fitting a nasal speculum via a nostril. These features are visualized by this approach:

  • Middle and inferior conchae.
  • Superior middle and inferior meatuses.
  • Nasal septum.
  • Floor of the nasal cavity.

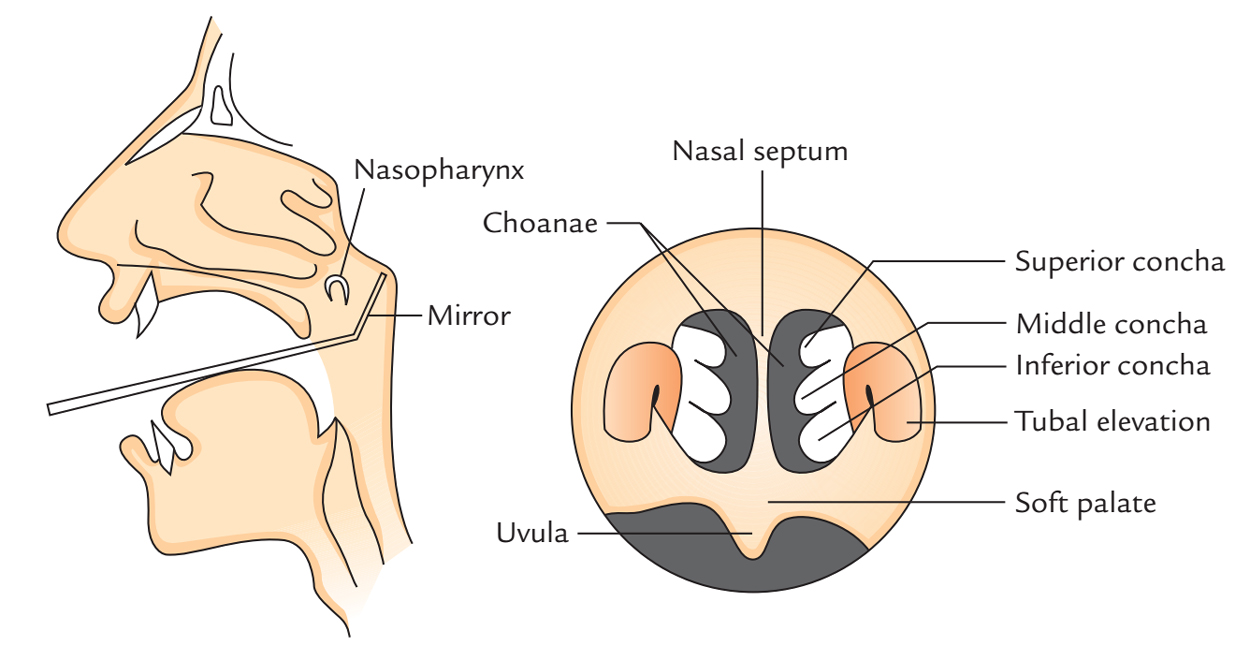

Posterior rhinoscopy: It’s performed by adding a mirror into the pharyx. These features can be visualized by this procedure:

Nasal Cavity: Rhinoscopy

Nasal Cavity: Rhinoscopy

  • Choanae.
  • Conchae.
  • Posterior border of the nasal septum.
