Muscles of the Back

Muscles of the back can be divided into superficial, intermediate, and deep group.

Since they originate in embryo (fetus) form by locations other than the back, muscles in the superficial as well as intermediate groups are extrinsic muscles. Anterior rami of spinal nerve innervate them. Muscles associated and involved in movements of the upper limb belong to the superficial group. The intermediate group might perform a respiratory action and comprises of muscles connected to the ribs. The deep group of muscles is called intrinsic muscles because they develop in the back. They are direct association with actions of the vertebral column and head and are supplied by posterior rami of spinal nerves.

Interactive Anatomical Interface


Please hover over the figure to get a brief info about the body parts. To get the elaborated info click on the body part.

Please rotate the device for better visual interaction.


Superficial Group of Back Muscles

Superficial Layer of Back Muscle

Superficial Layer of Back Muscle

Superficial group muscles are located directly deep towards the skin along with superficial fascia. They are occasionally called the appendicular group as these muscles are mainly associated with activities of the appendicular skeleton. The superior part of the appendicular skeleton that includes clavicle, scapula, and humerus, is attached to the axial skeleton that consists of skull, ribs, and vertebral column by these muscles.

Trapezius

Origin: Spinous prominences of CVII to TXII, Superior nuchal line, external occipital protuberance, ligamentum nuchae.

Insertion: Lateral one third of clavicle, acromion, and spine of scapula.

Innervation: Motor stimulation is due to accessory nerve [XI], and sensory stimulation is due to sensory nerve endings C3 and C4.

Functions: During abduction of humerus above horizontal it assists in rotating the scapula; upper fibers help in elevation, middle fibers help in adduction, and lower fibers help in depression scapula.

Latissimus Dorsi

Origin: Spinous processes of TVII to LV and sacrum, iliac crest, ribs X to XII.

Insertion: Floor of intertubercular sulcus of humerus.

Innervation: Thoracodorsal nerve (C6 to C8).

Functions: Extends, adducts, and medially rotates humerus.

Related:   Greater Palatine Foramen

Levator Scapulae

Origin: Transverse processes of CI to CIV.

Insertion: Upper portion medial border of scapula.

Innervation: C3 toC4 and dorsal scapular nerve (C4, C5).

Functions: Elevates scapula.

Rhomboid Major

Origin: Spinous processes of TII to TV.

Insertion: Medial border of scapula between spine and inferior angle.

Innervation: Dorsal scapular nerve (C4, C5).

Functions: Retracts (adducts) and elevates scapula.

Rhomboid Minor

Origin: Lower portion of ligamentum nuchae, spinous processes of CVII and TI.

Insertion: Medial border of scapula at spine of scapula.

Innervation: Dorsal scapular nerve (C4, C5).

Functions: Retracts (adducts) and elevates scapula.

Intermediate Group of Back Muscles

Both Serratus posterior superior and Serratus posterior inferior move obliquely outwards via the vertebral column to connect to the ribs. Serratus posterior superior is located deep to the rhomboid muscles, while serratus posterior inferior is located deep to the latissimus dorsi. Both serratus posterior muscles are attached to the vertebral column and associated structures medially and either descends like the fibers of the serratus posterior superior or else ascend the fibers of the serratus posterior inferior to connect to the ribs. These two muscles elevate and depress the ribs. Segmental branches of anterior rami of intercostal nerves innervate the serratus posterior muscles. Intercostal arteries give vascular supply to them.

Serratus Posterior Superior

Origin: Lower portion of ligamentum nuchae, spinous processes of CVII to TIII, and supraspinous ligaments.

Insertion: Upper border of ribs II to V just lateral to their angles.

Innervation: Anterior rami of upper thoracic nerves (T2 to T5).

Function: Elevates ribs II to V.

Serratus Posterior Inferior

Intermediate Layer of Back Muscles

Intermediate Layer of Back Muscles



Origin: Spinous processes of TXI to LIII and supraspinous ligaments.

Insertion: Lower border of ribs IX to XII just lateral to their angles.

Innervation: Anterior rami of lower thoracic nerves (T9 to T12).

Function: Depresses ribs IX to XII and may prevent lower ribs from being elevated when the diaphragm contracts.

Deep group of back muscles

The deep or intrinsic muscles of the back extend from the pelvis to the skull and are innervated by segmental branches of the posterior rami of spinal nerves. They consist of:

  1. The extensors and rotators of the head and neck: the splenius capitis and cervicis (spinotransversales muscles).
  2. The extensors and rotators of the vertebral column: the erector spinae and transversospinales. and
  3. The short segmental muscles: the interspinales and intertransversarii.

The vascular supply to this deep group of muscles is through branches arteries like:

  • Vertebral
  • Deep cervical
  • Occipital
  • Transverse cervical
  • Posterior intercostal
  • Subcostal
  • Lumbar
  • Lateral sacral arteries

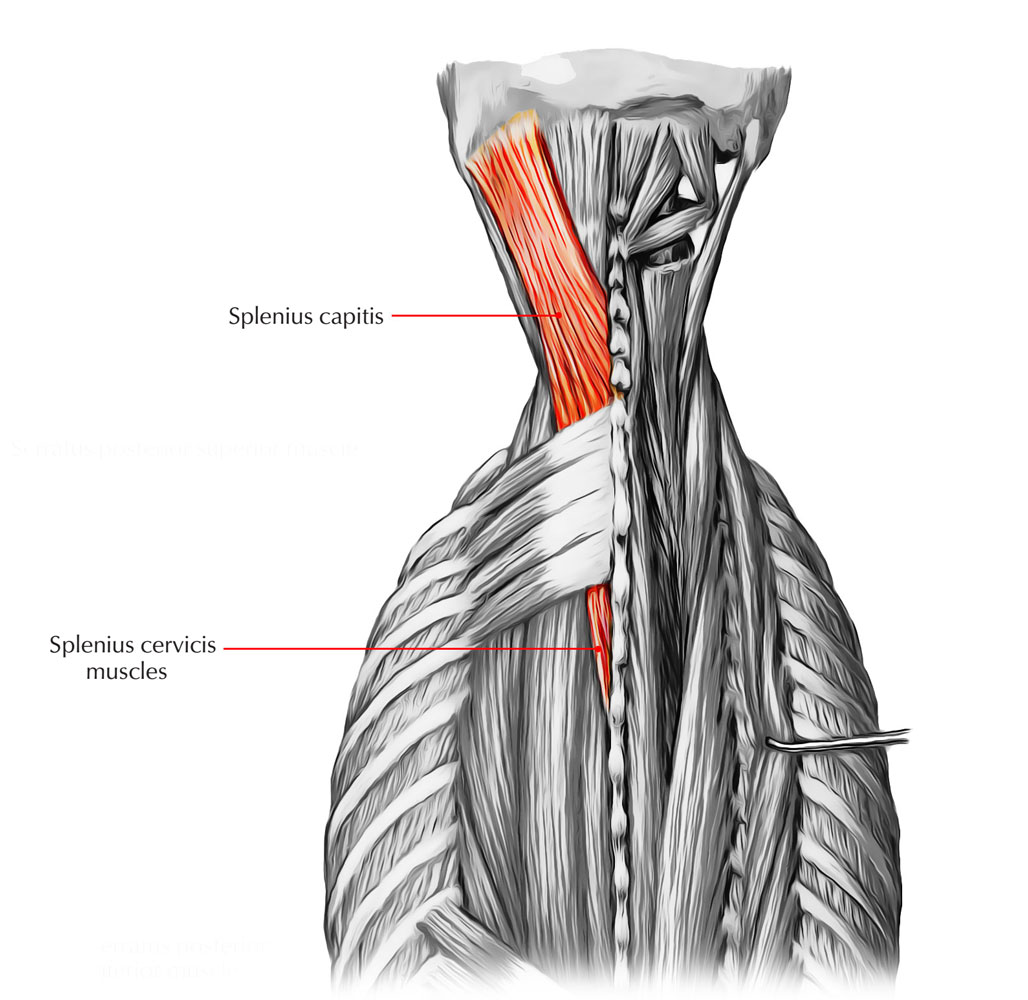

Spinotransversales Muscles

Spinotransversales Muscles

Spinotransversales Muscles

The two spinotransversales muscles go upward and laterally via the spinous processes and ligamentum nuchae:

Related:   Cricoid Cartilage

Independently, each muscle turns the head to one side that is the same side as the contracting muscle and collectively, the spinotransversales muscles move the head backward, elongating the neck.

Splenius Capitis

Origin: Lower half of ligamentum nuchae, spinous processes of CVII to TIV.

Insertion: Mastoid process, skull below lateral one third of superior nuchal line.

Innervation: Posterior rami of middle cervical nerves.

Function: Together, they draw head backward, extending the neck and individually, each one draws and rotates head to one side i.e. turns face to same side.

Splenius Cervicis

Origin: Spinous processes of TIII to TVI.

Insertion: Transverse processes of CI to CIII.

Innervation: Posterior rami of lower cervical nerves.

Function: Together they extend neck, and individually they draw and rotate head to one side i.e. same side.

Erector Spinae Muscles

Among intrinsic back muscles the erector spinae remains the largest group. The muscles are located medially amid the spinous processes, posterolaterally towards the vertebral column and laterally towards the angles of the ribs. Inside the thoracic and lumbar regions thoracolumbar fascia as well as the serratus posterior inferior, the rhomboid and splenius muscles surround them.

Muscles of the Back: Erector Spinae Muscles

Muscles of the Back: Erector Spinae Muscles

Iliocostalis Lumborum

It originates via sacrum, spinous processes of lumbar and lower two thoracic vertebrae and their supraspinous ligaments, and the iliac crest; and Insert inside angles of the lower six or seven ribs.

Iliocostalis Thoracis

It originates in Angles of the lower six ribs and inserts in angles of the upper six ribs and the transverse process of CVII.

Iliocostalis Cervicis

It originates in angles of ribs III to VI, while Inserts in Transverse processes of CIV to CVI.

Longissimus Thoracis

It starts in blends with iliocostalis in lumbar region and is attached to transverse processes of lumbar vertebrae. While it Inserts in Transverse processes of all thoracic vertebrae, towards the tubercles of the lower nine or ten ribs laterally.

Longissimus Cervicis

It originates in transverse processes of upper four or five thoracic vertebrae and it inserts in transverse processes of CII to CVI.

Longissimus Capitis

It originates in Transverse processes of upper four or five thoracic vertebrae and articular processes of lower three or four cervical vertebrae and inserts in posterior margin of the mastoid process.

Spinalis Thoracis

It originates in Spinous processes of TX or TXI to LII and inserts in spinous processes of TI to TVIII (varies).

Spinalis Cervicis

It originates in lower part of ligamentum nuchae and spinous process of CVII (sometimes TI to TII) and inserts in spinous process of CII (axis).

Spinalis Capitis

It originates while blending with semispinalis capitis and it inserts in semispinalis capitis.

Muscles of Back: Transversospinales Muscles

Muscles of Back: Transversospinales Muscles

The transversospinales muscles go from transverse processes to spinous processes occupying the groove between these two vertebral projections obliquely upward and medially. They are made up of of three major subgroups the semispinalis, multifidus, as well as rotatores muscles and are situated deep towards the erector spinae.

  • The semispinalis muscles are the most superficial collection of muscle fibers in the transversospinales group.
  • Deep to the semispinalis is the second group of muscles, the multifidus.
  • The small rotatores muscles are the deepest of the transversospinales group.
Related:   Subcutaneous Bursa



Semispinalis Thoracis

It originates inside transverse processes of TVI to TX and inserts in spinous processes of upper four thoracic and lower two cervical vertebrae.

Semispinalis Cervicis

It originates in transverse processes of upper five or six thoracic vertebrae and inserts in spinous processes of CII (axis) to CV.

Semispinalis Capitis

It originates in transverse processes of TI to TVI (or TVII) and CVII and articular processes of CIV to CVI, and inserts in Medial area between the superior and inferior nuchal lines of occipital bone.

Multifidus

It originates through Sacrum, origin of erector spinae, posterior superior iliac spine, mammillary processes of lumbar vertebrae, transverse processes of thoracic vertebrae, and articular processes of lower four cervical vertebrae while it inserts in the base of spinous processes of all vertebrae from LV to CII (axis).

Rotatores Lumborum

It starts in transverse processes of lumbar vertebrae and inserts in spinous processes of lumbar vertebrae.

Rotatores Thoracis

It originates in transverse processes of thoracic vertebrae and Inserts spinous processes of thoracic vertebrae.

Rotatores Cervicis

It originates in articular processes of cervical vertebrae and inserts in spinous processes of cervical vertebrae.

Segmental Muscles

The two groups of segmental muscles are innervated via posterior rami of spinal nerves and are located deeply in the back. The first group of segmental muscles that arise via the transverse processes of vertebrae CVII and TI to TXI is the levatores costarum muscles. They insert within the rib under the vertebra of origin in the area of the tubercle and have an oblique lateral and downward course. Their contraction elevates the ribs. The second group of segmental muscles are called the interspinales and the intertransversarii, which pass between neighboring spinous processes is the real segmental muscles of the back, which pass between adjacent transverse processes. They stabilize surrounding vertebrae to enable more efficient activity of the large muscle groups in actions of the vertebral column.

Muscles of the Back - Segmental Muscles

Muscles of the Back – Segmental Muscles

Levatores Costarum

It originates short paired muscles arising from transverse processes of CVII to TXI and inserts the rib below vertebra of origin near tubercle. Its main function is elevation of ribs through contraction.

Interspinales

It originates in short paired muscles attached to the spinous processes of contiguous vertebrae, one on each side of the interspinous ligament and its main function as postural muscle is that it stabilizes adjoining vertebrae during movements of vertebral column.

Intertransversarii

It originates in small muscles between the transverse processes of contiguous vertebrae. Its primary function as postural muscle is stabilizing adjoining vertebrae during movements of vertebral column.
